Products selection for Danfoss.
Heat Interface Unit Spares

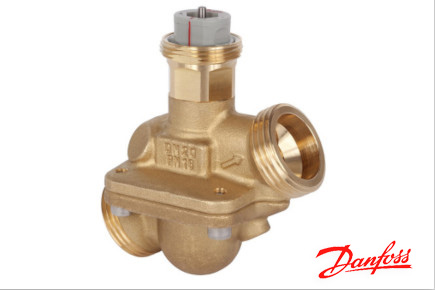

Pressure independent control valve: ABQM

Control Valve control valve PICV ABQM

The AB‑QM valve equipped with an actuator is a control valve with full authority and an automatic balancing function / flow limitation. Typical applications are: Temperature control with permanent automatic balancing on terminal units (chillers, air-handling units, fan coils, induction units, radiation panels and heat exchangers). more...

AME 110 NL

Actuators for modulating control Actuators for modulating control AME 110 NL

The actuators are used together with automatically balanced combination valve type AB-QM for DN 10-32. The actuator can be used with fan coil units, induction units, small reheaters, recoolers and zone applications in which hot/cold water is the controlled medium. more...

AME 130

Actuators for modulating control Actuators for modulating control AME 130

AME 130, AME 140, AME 130H and AME 140H actuators are used with: • VZ DN 15, 20, • VZL DN 15, 20 with stem extension plug or • AHQM (DN 15-32) valves. The actuator can be used with fan coil units, induction units, small reheaters, recoolers, and zone applications in which hot/cold water is the controlled medium. more...

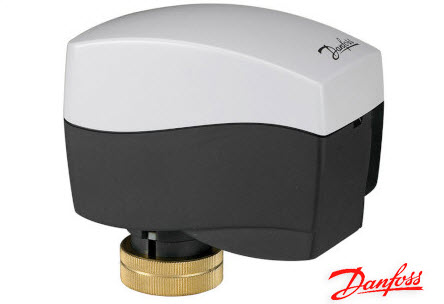

AMV 110 NL

Actuators for three point control Actuators for three point control AMV 110 NL

The actuators are used together with automatically balanced combination valve type AB-QM for DN 10 to DN 32. Typical applications for that products are: temperature control and permanent automatic balancing on terminal units (fan-coils, chilled ceilings, air-handling units..). more...

AMV 130

Actuators for three point control Actuators for three point control AMV 130

AMV 130/140 and AMV 130H/140H actuators are used with: • VZ DN 15, 20, • VZL DN 15, 20 with stem extension plug or • AHQM (DN 15-32) valves. The actuator can be used with fan coil units, induction units, small reheaters, recoolers and zone applications in which hot/cold water is the controlled medium. more...

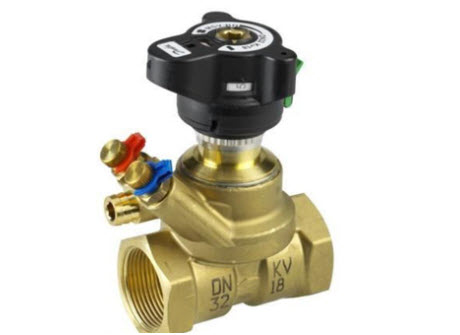

Manual Presetting Valves LENO™ MSV-O

Commissioning Valve Manual Presetting Valves LENO™ MSV-O Commissioning Valve

LENO™ MSV-O is a new generation of manual valves for balancing flow in heating, cooling and domestic hot water systems. It is recommended to use LENO™ MSV-O in constant flow systems in front of boilers, flat stations or heat pumps in one-family houses for balancing, shut-off function for service and repair, flow verification, one pipe systems. The valve may be mounted in flow or return. more...

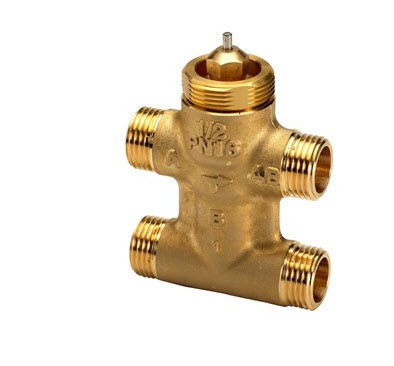

VZL4 valve

Control Valve VZL4 valve Control Valve

VZL valves provide a high quality, cost effective solution for the control of hot and/or chilled water for fan coil units, small reheaters, and recoolers in temperature control systems. The valves are used in combination with: - AMV(E) 130(H)/140(H) ABNM A5 with extension plug; - AMV(E) 13 (SU) and TWA-ZL actuators. more...

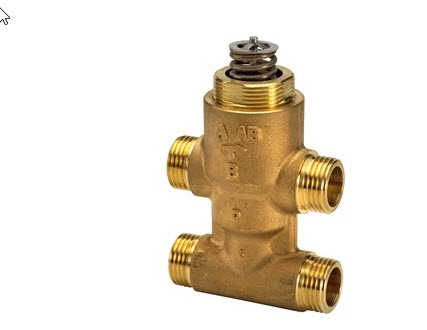

VZ4 valve

Control Valve VZ4 valve Control Valve

VZ valves provide a high quality, cost effective solution for the control of hot and/or chilled water for fan coil units, small reheaters, and recoolers in temperature control systems. The valves are used in combination with AMV(E) 130/140, AMV(E) 130H/140H and AMV(E) 13 SU actuators. more...

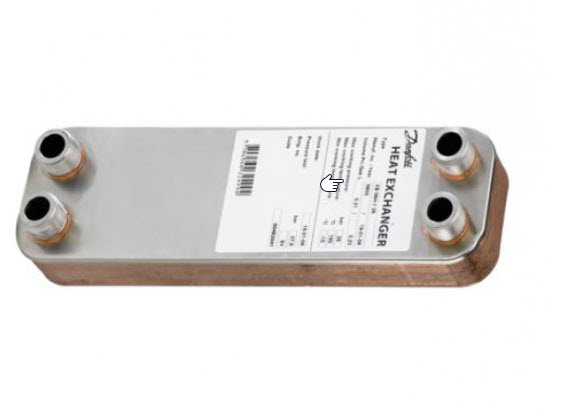

Micro Plate Heat Exchanger XB06

Heat Exchanger Micro Plate Heat Exchanger XB06 Heat Exchanger

XB06 is brazed heat exchanger, designed and configured for District Heating, District Cooling and other Heating applications. Characterized by their unique plate pattern, MPHEs enable heat to be transferred more efficient than any previous model of heat exchangers.

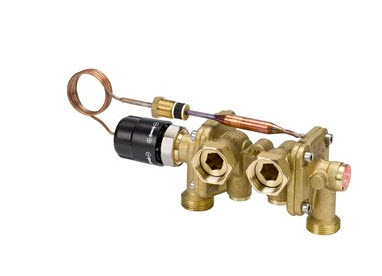

Flow-compensated temperature controller type IHPT

Controller Flow-compensated temperature controller type IHPT Controller

The IHPT controller controls the domestic hot water (DHW) by taking both flow volume and temperature into account. During tapping the valve opens and the thermostat starts to control the DHW temperature. The control is independent of varying tapping flows, supply temperature and differential pressure. When tapping ends, the valve closes immediately. This protects the heat exchanger (HEX) from scaling.

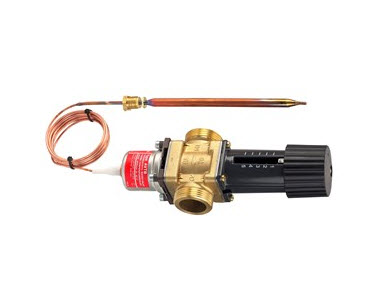

AVTB 15 Thermostatic valve

Controller AVTB 15 Thermostatic valve Controller

AVTB is self-acting temperature controller used to control the water temperature in hot water tanks, heat exchangers, oil preheaters, etc. Controller closes on rising temperature. The controller has a control valve, thermostatic actuator and handle for temperature setting. Thermostatic actuator consist of a bellows, capillary tube and sensor.

RAVK self acting thermostatic operator

Controller RAVK self acting thermostatic operator Controller

RAVK is a self-acting thermostatic operator used to control temperatures in small hot-water cylinders (i.e. storage tanks) or heat exchangers in hydronic hot water systems. RAVK closes on rising sensor temperature.

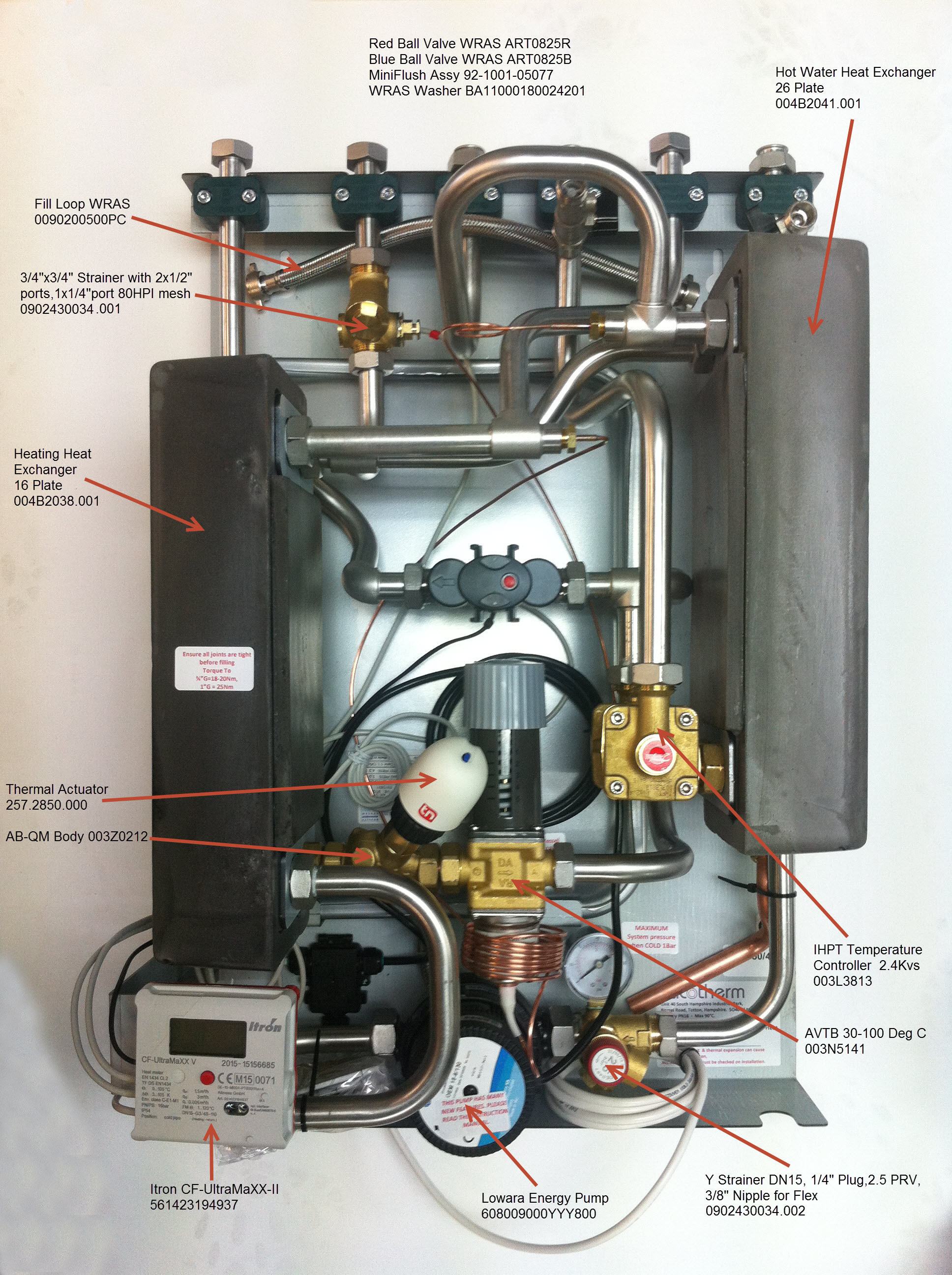

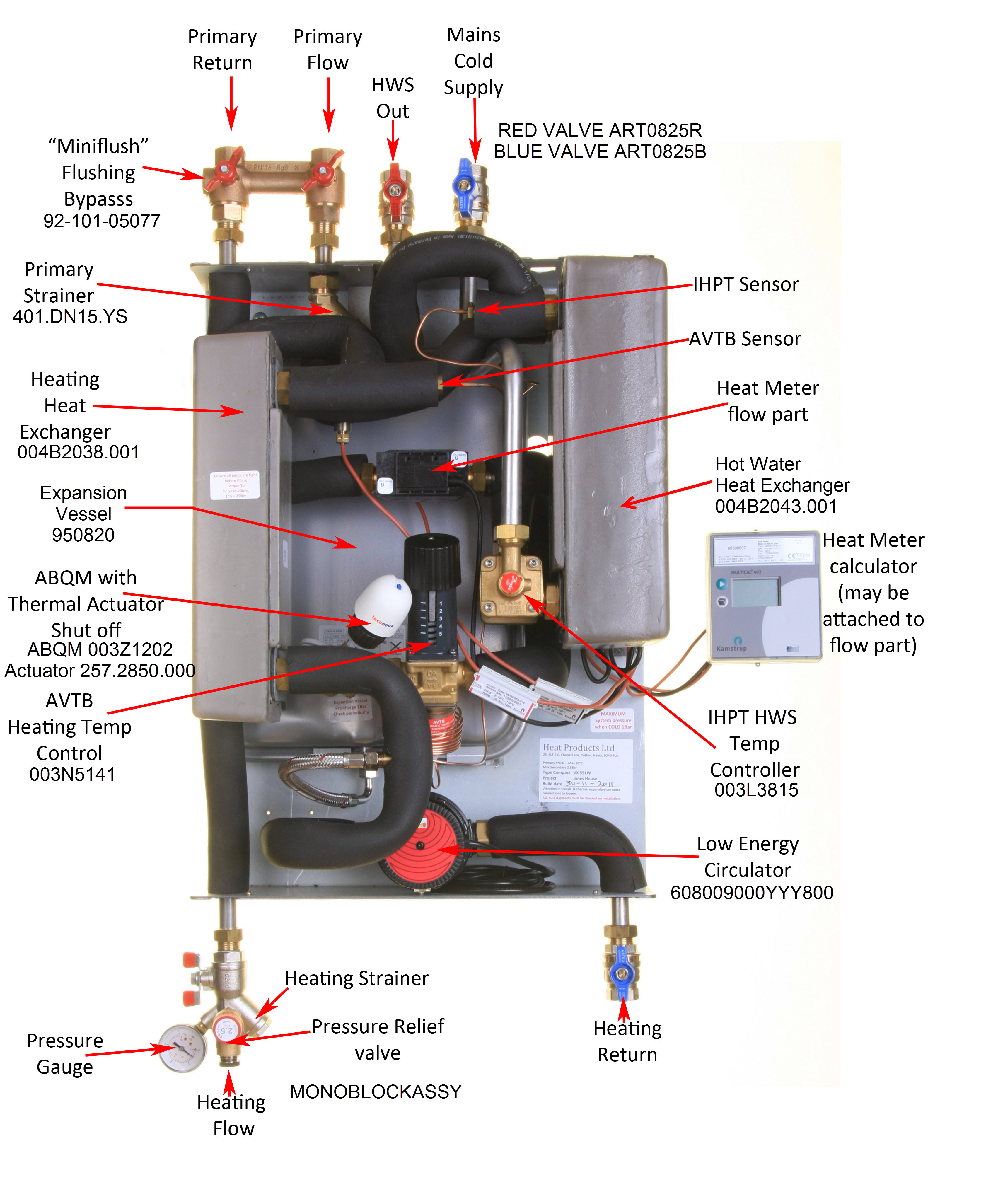

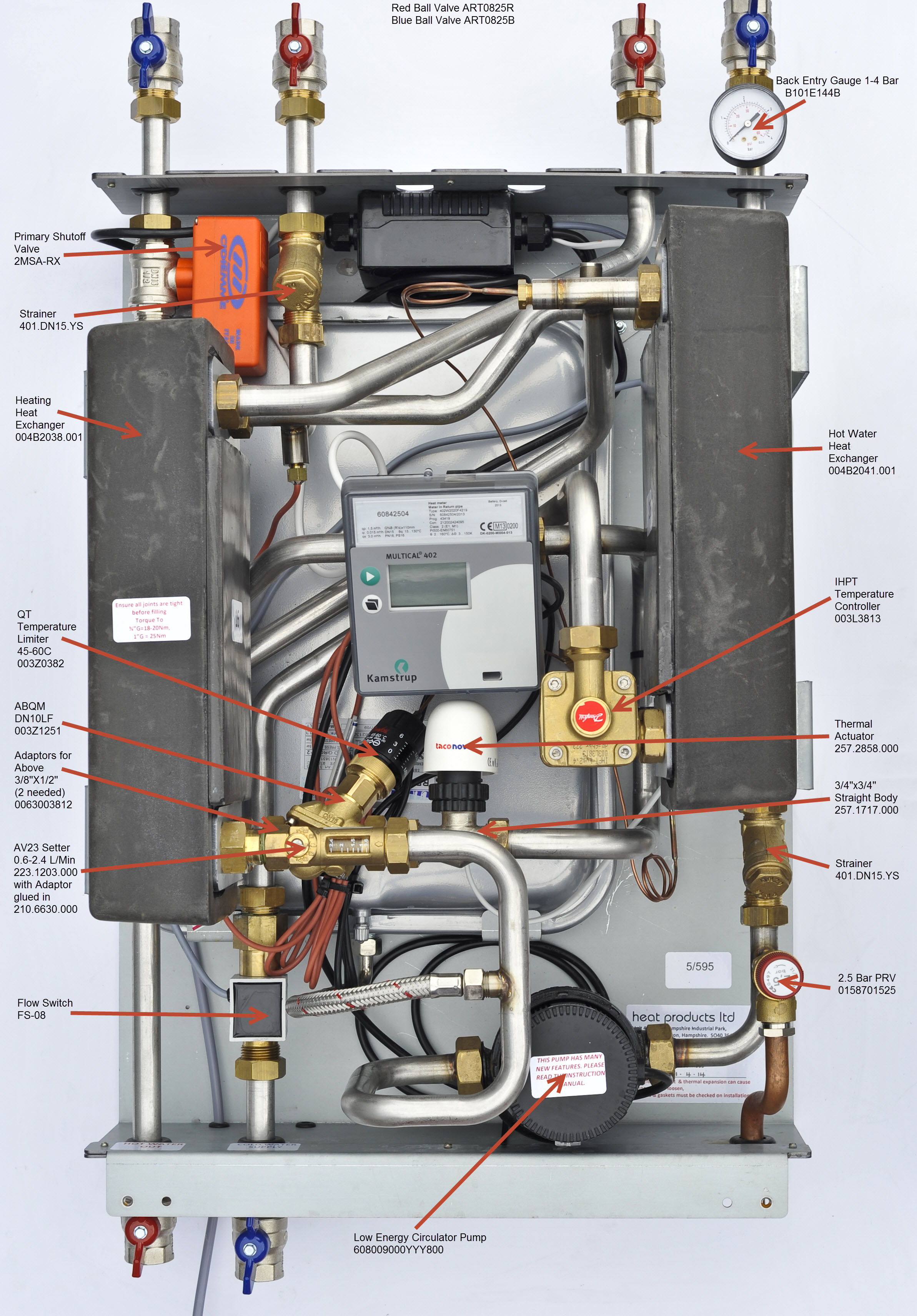

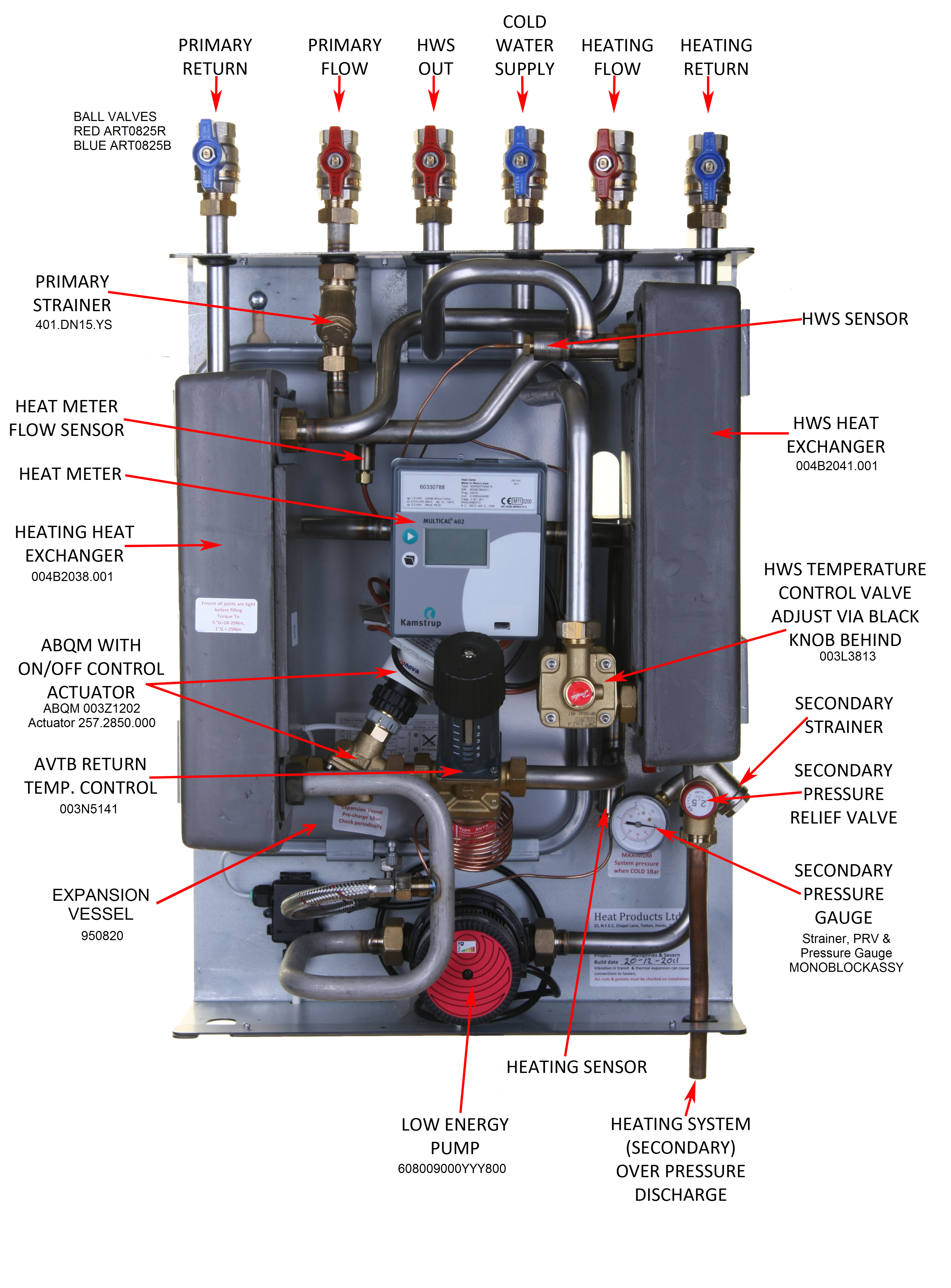

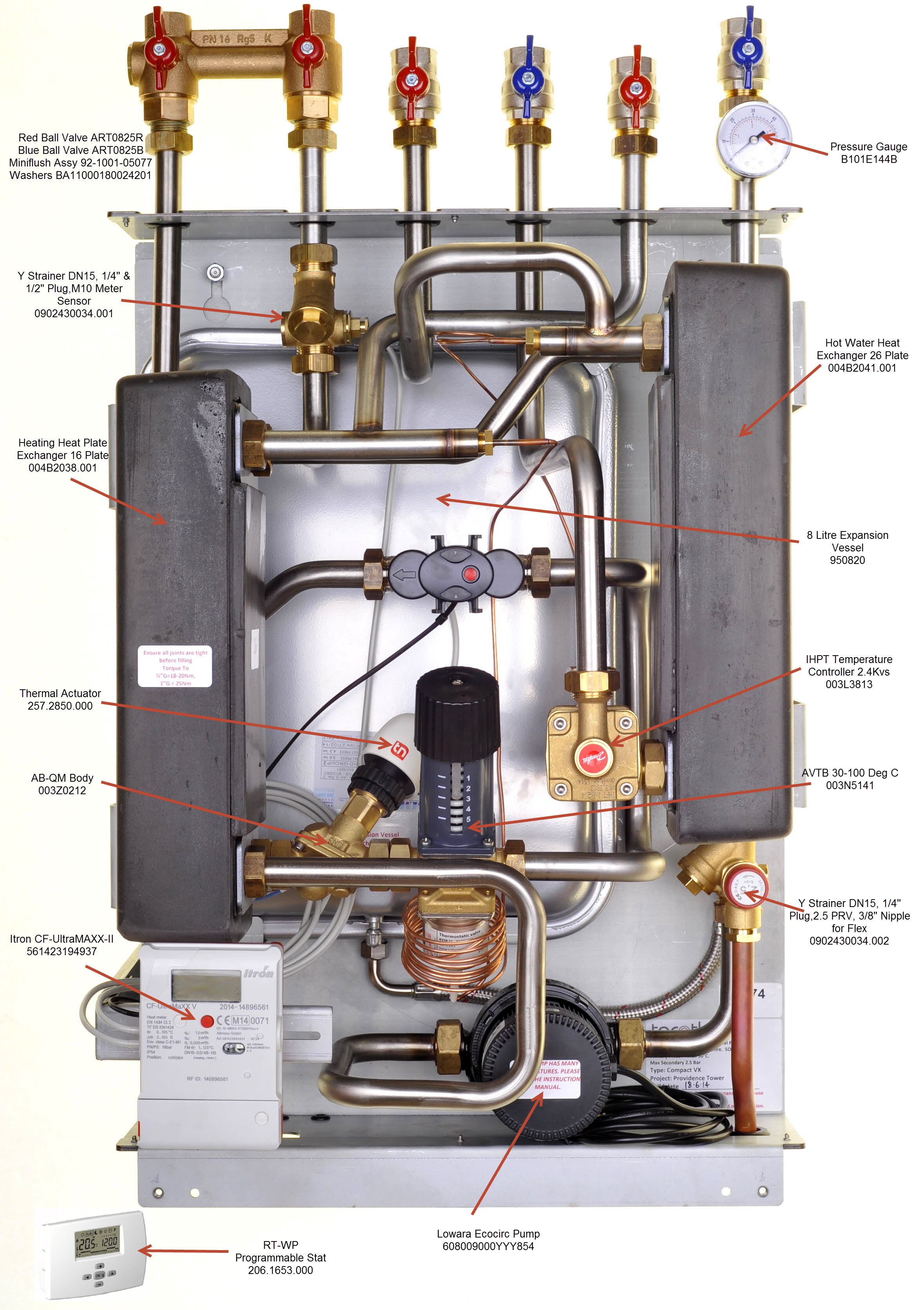

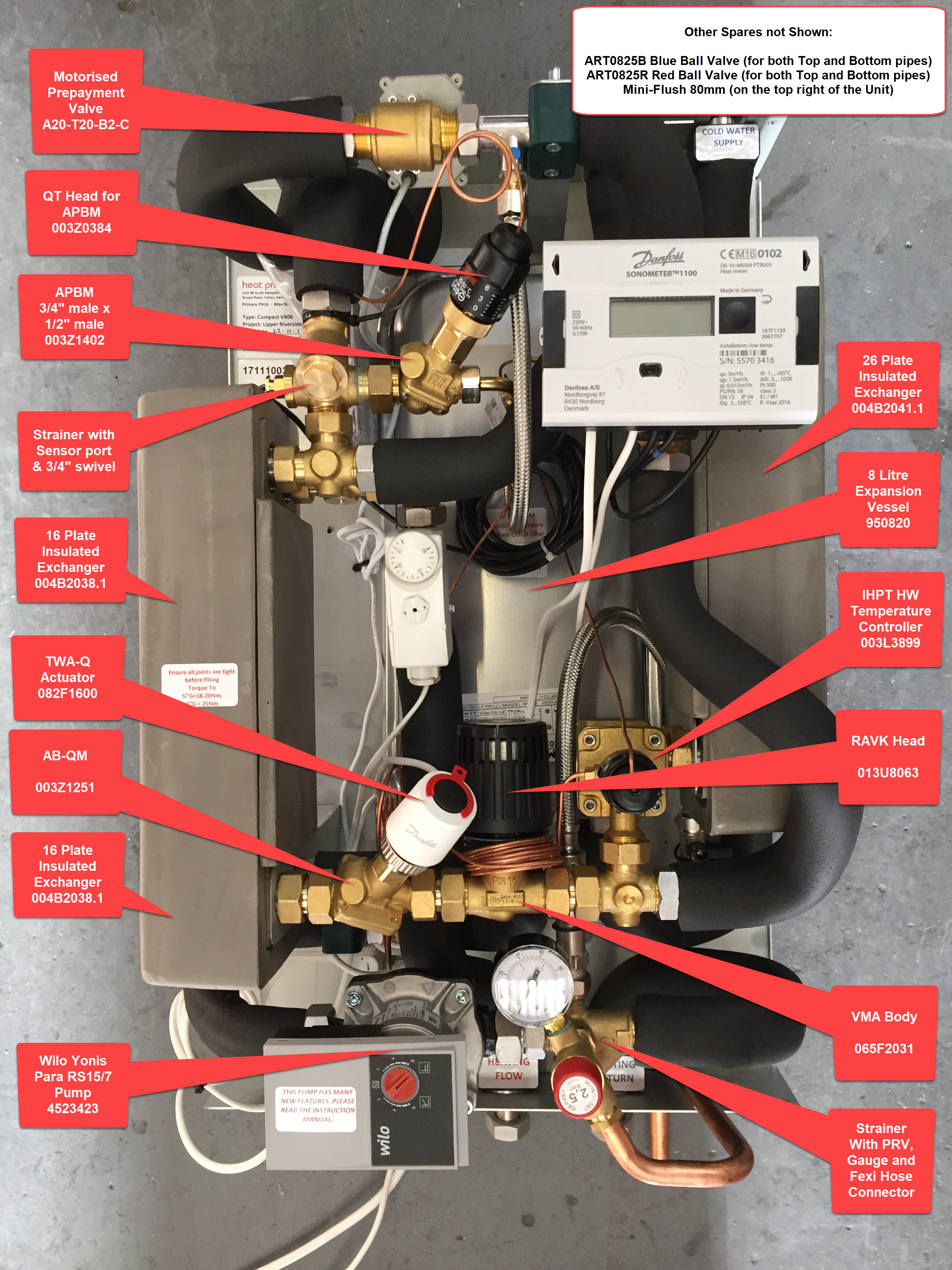

Examples of HIU units with element's location.


miniflush balancing valve

miniflush balancing valve

miniflush balancing valve

miniflush balancing valve

miniflush balancing valve

miniflush balancing valve
